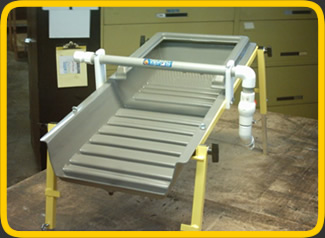

OMEGA HIGH PRODUCTION CONCENTRATOR

Highly Portable - Light Weight FOLDING Power Sluice that is very possibly the end (the Omega) of your search for a "DO ALL" piece of Mining Equipment for processing ALL materials (incl. SAND) and the recovery of ALL Sizes of Gold down to 200 (-) Mesh !

HERE ARE SOME OF THE FEATURES OF THIS ALL NEW PRODUCT;

* All New Design
* Exclusive New Folding Frame
* Wide - Long Sluice Body,
* All Terrain - Angle Leg Adjustments,
* Anti-SPlash and Spray Guard
* 4 Port "Cannon" Water Delivery Bar which is fully adjustable for desired angle and storage
* 3 - Riffle Groupings consisting of:
o 3 NUGGET TRAPS
o 2 DUAL RAMP RIFFLES and 6 "High Relief" DROP RIFFLES.
* Slide Out Sluice Tray (flume) for FAST & EASY CLEAN UPS.
* No Hopper Required as the entire Sluice IS a Hopper !

All Backed by Our ...
1 YEAR WARRANTY !

Flowmaster Sluice

Regulated Feed and Riffle Design (in relation to Water Flow, Sluice Length and Width) are two of the most important aspects of any piece of equipment using Hydro Dynamics and Gravity as the recovery method.

• This new product features:
• Special designd hopper and water de-fuser.
• Adjustable Bucket Rack that holds your material bucket in place.
• Our hallmark removable sluice for FAST clean-ups.
• Powder Coated Steel Frame and Heavy Duty Steel Spuds (legs).
• Brass Water Nozzle for complete control of water to the bucket from a steady stream to a 360 degree fan.
• Proven results when it comes to FINE GOLD recovery.

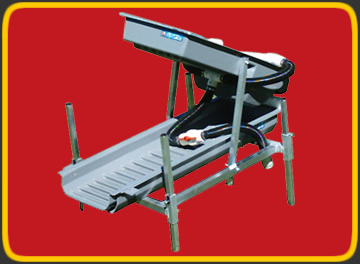

Sluicemaster Yukon - Mid size highbanker

MID-SIZE HIGHBANKER

The ALL NEW "Yukon" offers its owners the ability to process at a rate of 1 (one) standard shovel load per each 20 seconds or, 3 shovel loads per minute or, 180 shovels per hour. Yukon Sluice

(That wears ME out just thinking about it! )

The "Yukon" is a light weight MID-SIZE Power Sluice that features ALL of the benefits that have become synonymous with Angus MacKirk ™ gold prospecting equipment ...
INCLUDING AFFORDABILTY.

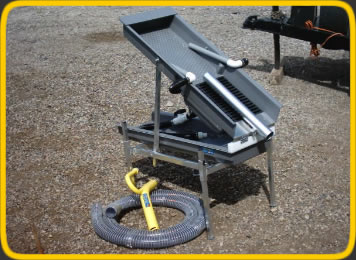

Sluicemaster Klondike - from Angus Mackirk

Slick plate over low clog hopper...

There are a lot of new features designed into this Highbanker!

The new Hopper provides a “Slick Plate” shovel feed area where the bank run is BLASTED with two water “CANNONS” that immediately dissolve and stratify the material, then moves it downstream to the Reverse Wedge Grate that is 3/8ths at the opening and gets wider below the surface. Being wider at the bottom than at the opening allows the material to fan out thus reducing the potential for clogging or “plugging” and keeps the material moving into the sluice. Material larger than 3/8ths is discharged overboard.

The new “Water Cannon” bar is adjustable for angle with the aid of a thumb screw device securely imbedded in the shield that protects it from getting bumped with the shovel.

All my power sluices now feature a “Flex Line” water delivery line with valve. The Flex Line allows you to approach the High Banker with your water supply … from any direction, reducing the number of “Kinks” in your blue lay flat hose.

The inline valve allows you to slow the water flow prior to clean up, shut down, and at before restart (with material still in the sluice) to prevent “surges” that can rob your riffles.

Excalibur ...Reloaded Sluice

In the Spring of 2006, I produced the last of the original "Excalibur" model Power Sluices for a customer in Vermont.

Although those that owned them developed a Love Affair with the product, it was EXTREMELY labor intensive to produce.

It was very heavy and frankly, because of the time it took to build and the cost of the materials being used, it had become TOO EXPENSIVE, with the last few units selling for $1,695.00 without engine, pump, and hoses.

Even after I had removed Excalibur from my product line, I continued to receive inquiries from all over the planet.

I told them that if I could ever figure out a way to build it (with the same level of recovery) using more efficient labor methods, satisfactory materials, get it down to a manageable weight and the price down to an affordable level, I would offer it again.

WELL ... I FINNALY DID !!!

"Excalibur "... Reloaded!

Now Ready for Market.

With the same level of recovery of the original, this new model weights in at under 20 pounds so it is light enough for even a person of slight build and strength to EASILY handle.

It can be produced in 1/3rd the labor time of the original without sacrificing quality or finish. The Industrial Grade Plastics are hard wearing and strong and it is COMPETITIVELY PRICED!

The new Hopper provides a "Slick Plate" shovel feed area where the bank run is BLASTED with two water "CANNONS" that immediately dissolve and stratify the material, then moves it downstream to the Reverse Wedge Grate that is 3/8ths at the opening and gets wider below the surface.

Being wider at the bottom than at the opening allows the material to fan out thus reducing the potential for clogging or plugging and keeps the material moving into the sluice. Material larger than 3/8ths is discharged overboard.

Materials smaller than 12 mesh are segregated from the bulk gangue via the "EXTRACTION RIFFLES" in the upper Flume Sluice and sent to the Lower Sluice where the Ultra Fine Gold is captured. Nuggets and Midlings (Course Gold) are caught in the Boil Box at the end of Upper Sluice where they are easily removed by the special drain in the Boil Box.

I am PROUD to offer this "STATE OF THE ART" product for ...
