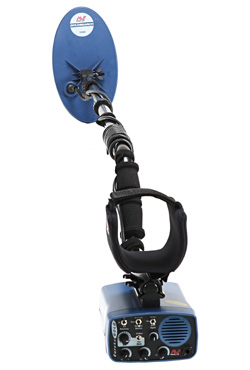

Minelab Eureka Gold Metal
Detector
The Eureka Gold gives you 6.4kHz for maximum depth, 20kHz for general
detecting and the super sensitive 60kHz to find the smallest gold nuggets
that others are missing. Minelab's exclusive triple frequency technology
makes prospecting easier!
Featuring Minelab's "Accu-Trak" Digital Ground Balance
with switchable 2 speed recovery, combined with new microprocessor controlled
discrimination circuitry takes the guess work out of detecting so YOU
will find more gold, more often. Hot Rocks are no problem for the Eureka
Gold, it will punch through highly mineralized soil with ease.
eureka accessoriesaccessories for this product | eureka manualsproduct
manual
The HOTTEST VLF Gold Detector on the Market today!
Why restrict your prospecting when you can find more gold, with
the Eureka Gold, faster and easier than ever before.
- Exclusive Triple Frequency operation with switchable 6.4, 20
or 60 kHz!
- "ACCU-TRAK" Digital Ground Balance with 2 speed adjustable
or fixed mode.
- Iron Rejection in each frequency.
- Variable Discrimination Control gives you ultimate accuracy.
- Full coverage with Minelab's 10" Double D "easysweep"
elliptical coil system.
- NEW Rugged Metal Arm rest and stabilizer strap.
- NEW "firm feel" comfort balance shaft.
- State-of-the-Art NiMH rechargeable Battery System.
- 2 position box mounting system.
| Features |
| Length |
Maximum |
53in (1350mm) |
| Minimum |
47in (1190mm) |
| Weight |
Control Box* |
2.4kg |
| Goldsearch 1000 Elliptical
Coil |
14.8oz (420gms) |
| Configuration |
2 position shaft and optional
Hip mount |
| Technology |
Very Low Frequency (VLF) |
| Transmit Frequency |
3 Frequencies (6.4, 20 &
60 kHz) |
| Ground Rejection |
Accu-Trak Automatic Digital
Ground Balancing |
| NiMH Rechargeable
Battery System |
12V, 1000mAh |
| Mains Charger
|
110V (USA), 230V (EU), 240V
(AUS) |
| Battery |
6V 12 Ah Gel Cell |
| Metal Arm Rest,
Neoprene Cover & Strap |
| Detector Stand |
| Controls |
| On/Off; Volume |
1 turn control |
| Sensitivity |
1 turn control |
| Threshold |
1 turn control |
| Discriminate
Level Adjust |
1 turn control |
| All Metals/Discriminate |
2 pos. switch |
| Tone |
1 turn control |
| Frequency |
3 pos. switch |
| Balance |
3 pos. switch |
| Signal |
3 pos. switch |
| Accessories |
| Alkaline Battery
System |
8 x 1.5V (AA) |
| Goldsearch Coil |
11" Round |
| Car Charger |
12V, Cigarette lighter plug |
| Hip Mount Bag |
Durable cordura with window |
| Headphones |
32 ohms |
| Warranty |
| Control Box |
2 years |
| Coil |
1 year |
| *including batteries |
