SPECIFICATIONS
Operating
Frequency....... |
|
10
kHz |
Searchcoil
Type.............. |
|
Concentric |
Searchcoil
Size............... |
|
9
x 8 |
Cable
Length................... |
|
Approx.
3' |
Audio
Freq. All Metal VCO |
|
Approx.
350 to 950 Hz |
Audio
Output.................... |
|
2¼"
speaker and headphone jack |
Headphone
Compatibility.. |
|
¼"
stereo plug |
Weight
(may vary slightly). |
|
2.98
lbs |
Battery
Requirement......... |
|
Eight
AA (alkaline) |
Battery
Life (typical).......... |
|
10
to 20 hours |
Optimum
Temp. Range..... |
|
30°
to 100° F |
Optimum
Humidity............ |
|
0
to 75% R.H. |
Operating
Modes............. |
|
No Motion All
Metal |
....................................... |
|
Silent Search
Discriminate |
|

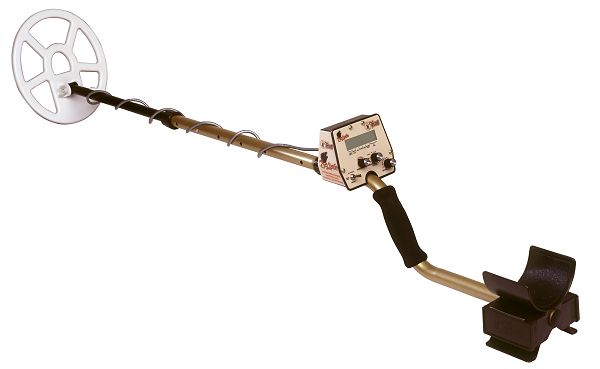

| The
DeLeón is a Target Identification Detector or T.I.D. The
DeLeón is designed as an easy to use, turn-on-and-go detector.

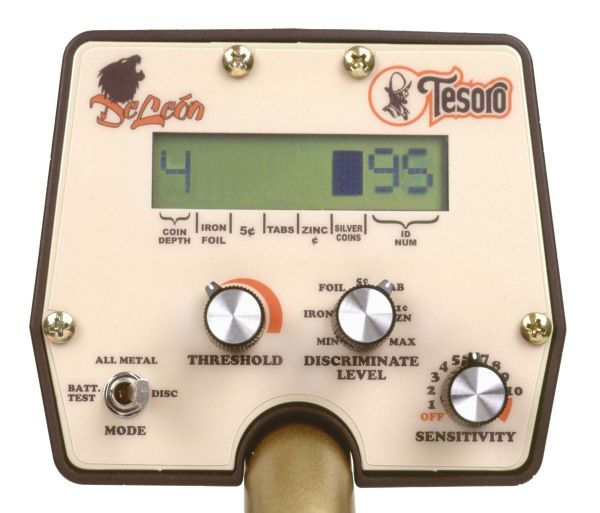

The faceplate has only four controls: Sensitivity, Discriminate,
Threshold and a Mode Switch. It uses the same circuitry as the
Cortés, so you can expect the same depth and sensitivity
from the DeLeón that the Cortés is well known for.
The DeLeón's display screen is one character high by eight
characters wide. It is larger and easier to read than the Cortés
display but does not carry as much information. Starting from
left to right on the faceplate, you will see that the DeLeón
has a Coin Depth reading, a five segment bar graph and a two-digit
Target ID Number. The bar graph shows several categories for ID
purposes, but we recommend that it be used with the ID Number
for the most accurate information.
