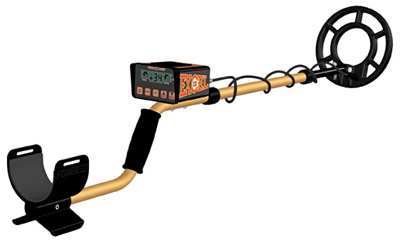

Fisher's ID Excel is one hot exciting metal detector with features that provide maximum performance, superior target separation, fast auto ground balance, outstanding depth and fully digital 4 tone target ID. The ID Excel uses the hottest new digital technology to give you a digital keypad to adjust discrimination, sensitivity or to activate the easy to use pre-programmed coins/relic mode, accurate Numeric ID so you know what you are digging, and performance that cuts through trash and goes deep! All this power in a small, lightweight package with easy to use features. Backed by Fisher's 5 Year Warranty.



FEATURES

• ID discrimination with 4 tone audio & high resolution numeric target ID 4
• True ALL-Metal mode with single tone & high resolution numeric target ID 4
• Pinpoint - no motion mode with precision numeric readout
• Numeric LCD for the most accurate target ID!
• Four Tone, Digital Audio Target ID
• Superior Target Separation - to see through trash like no other!
• Automatic Ground Balance at the push of a button!
• Deep All Metal Mode
• Digital Keypad to adjust Discrimination & Sensitivity
• Constant Control Readout - no confusing menu to check settings
• Pre-Programmed COIN/RELIC Mode - factory preset
• Eight-Inch Open Center Spider Coil
• Three Piece Breakdown Handle
• 5 Year Warranty

SPECIAL FEATURES

Controls .....................................................keypad with tactile response
Display .......................................................LCD with constant control readout
DISC control ..............................................Yes
SENS control .............................................Yes
Automatic Ground Balance .........................Yes
Programmed Coin/Relic Mode .....................Yes
Audio OutputStereo Jack ............................Stereo Headphones (Optional)
Speaker .....................................................Built in
Tone ..........................................................4 tones digital audio ID system

CONTROLS

• ON/OFF power
• MENU press to adjust Disc, Sens, or choose Factory Preset
• P/P pushbutton for pinpointing
• AUTO auto ground balance
• MODE:
• ID discrimination mode with 4 tone audio & high resolution numeric target ID
• True ALL-Metal mode with single tone & high resolution numeric target ID
• Pinpoint - no motion mode with precision numeric readout

Standard Items:
8" Spider Coil with 7-foot cable
Operating manual

Optional Items:
Carrying Bag
Coil covers
Hard Carrying Case
Fisher Phones
Stereo Phones

SPECIFICATIONS

WEIGHT
Complete ......................................... 2.76 lbs
LENGTH
Extended................. 52” Collapsed 3................ 42”
SEARCH COIL
Type ......................................................... Concentric, Co-planar Spider Coil
Diameter .................................................. 8"
Shielding .................................................. 100% ESI 6
Submersible Coil .................................... Yes
FREQUENCY
1. Operating Frequency...................... 6.5 KHz
2. Audio Target Response:
OPERATING MODES
Iron ID .......................................... (LOW TONE)
Foil, Nickel, Rnd. Tabs ..................... (MID LOW TONE)
SquareTabs, Zinc ............................ (MID/HIGHTONE)
Copper, Clad, Silver Coin ................. (HIGH TONE)
Drop-in, no wires ....................................... Yes
Automatic Low Battery Alert ..................... Yes
BATTERIES
Type ........................ ................................. Two, 9-Volt Alkaline 5
Life ........................................................... 20-25 hours (Alkaline) 2
5 Year Warranty

NOTES:
1. Subject to improvement or modi.cation without notice.
2. Approximate.
3. The ID Excel disassembles to .t into an optional carrying case measuring approximately 6"x 21" x 15".
4. The ID Excel is a motion detector in the All Metal and Target ID modes. The search coil must be moving at least slightly to detect a target.
5. For maximum performance and battery life, always use Alkaline Batteries. .
6. ESI: Electro-Static Insulated to eliminate certain types of false signals.
